EMIGMA for MT/AMT

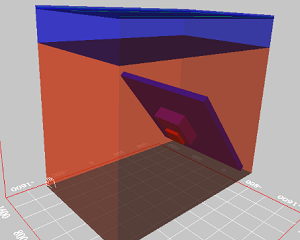

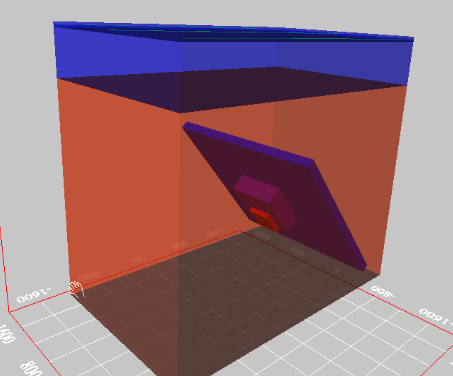

3D model
Click image to enlarge
3D model

The MT interpretation allows easy geophysical survey design including coordinate systems, geographic survey directions and true electric bipole receivers with actual survey lengths. Thus, it allows for correct integration of the electric fields along the receiver while also facilitating true calculation of induction effects in the modeled electric fields.

Airborne, Ground, Marine Applications

Includes EMIGMA for MT, QCTool and GBDecomp


Unlimited Survey Size!


Data Import

  • Manufacturer formats for import to QCTool
  • EDI import to QCTool
  • ASCII imports to QCTool
  • Import to EMIGMA through QCTool file

Data Processing and Correction

  • 1D digital and spatial filters, 2D spatial filters
  • Data Corrector tool combining dynamic spreadsheets and a line plotter for data cleaning, missing data interpolation and simultaneous plotting of different data channels for fast cross-analysis

3D Modeling

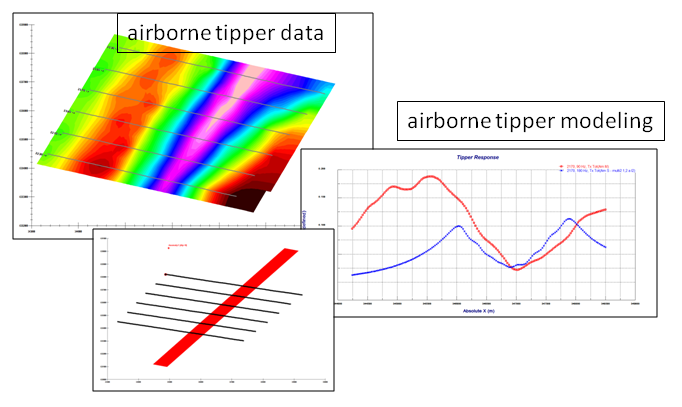

Airborne Tipper Data
Click image to enlarge
Airborne Tipper Data
  • Fast and accurate 3D simulations: model suite generation and batch mode
  • Electric cable and magnetic dipole receivers
  • True electric bipole receivers with actual survey lengths
  • Unlimited prism, plate and polyhedra targets
  • Multiple body interactions
  • Topography effects
  • Ability to handle full contrast between host and bodies
  • Interactive 3D geophysical model building tool
  • Import/Export models to CAD formats

1D MT Inversion

  • Resistivity depth inversions with 2D resistivity section or 3D volume displays
  • Underparametrized Marquardt style and over-parametrized Occam style techniques
  • Constrained inversions

3D MT Inversion

  • Two forward techniques
  • Topographic effects
  • Tipper inversion available as add-on to standard license
  • Post-inversion removal of grid cells

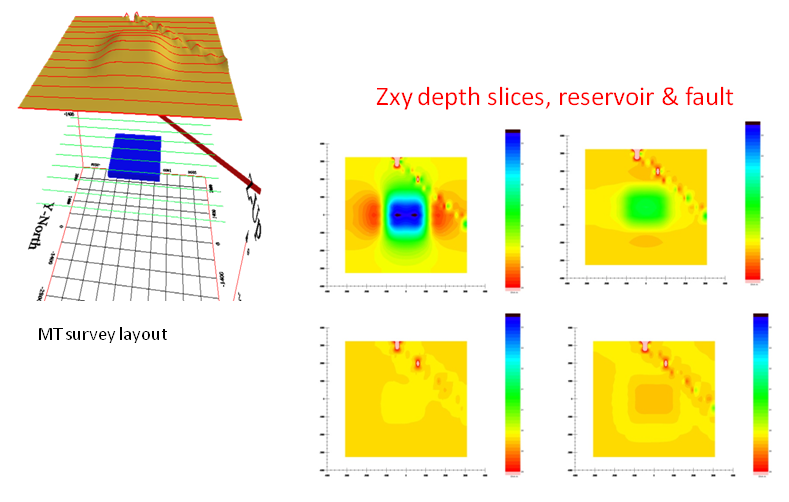

Zxy depth slices, Reservoir and Fault
Click image to enlarge
Zxy depth slices, Reservoir and Fault

Data Display and Analyses

  • 3D data display as profiles, vectors, true 3D surfaces or contoured surface with 3D structure representation
  • PEXShow tool - 2D representation of Resistivity/MT inversions
  • Pseudo-sections and resistivity sections
  • Grids: Natural Neighbor, Delauney Triangulation, Minimum Curvature and Thin-Plate-Splines
  • Contours: 2D and 3D surfaces
  • Line plots
  • Residual plots
For more detailed data display capabilities, see EMIGMA Complete

GBDECOMP

  • New version for Windows including the Groom-Bailey Decomposition
  • Included with a license for natural fields
  • Using your model results, synthetic impedance tensors are generated and noise processing using a suite of decomposition algorithms
  • Associated tools are provided for decomposition parameter plotting and fit analyses
  • Export of decomposition parameters to ASCII via QCTool
